SKU: PS628ASP_PREMIUM COMPACT_

position: HOME > PRODUCTS > PRISM SCOPE > PREMIUM COMPACT > SKU: PS628ASP

SKU: PS628ASP

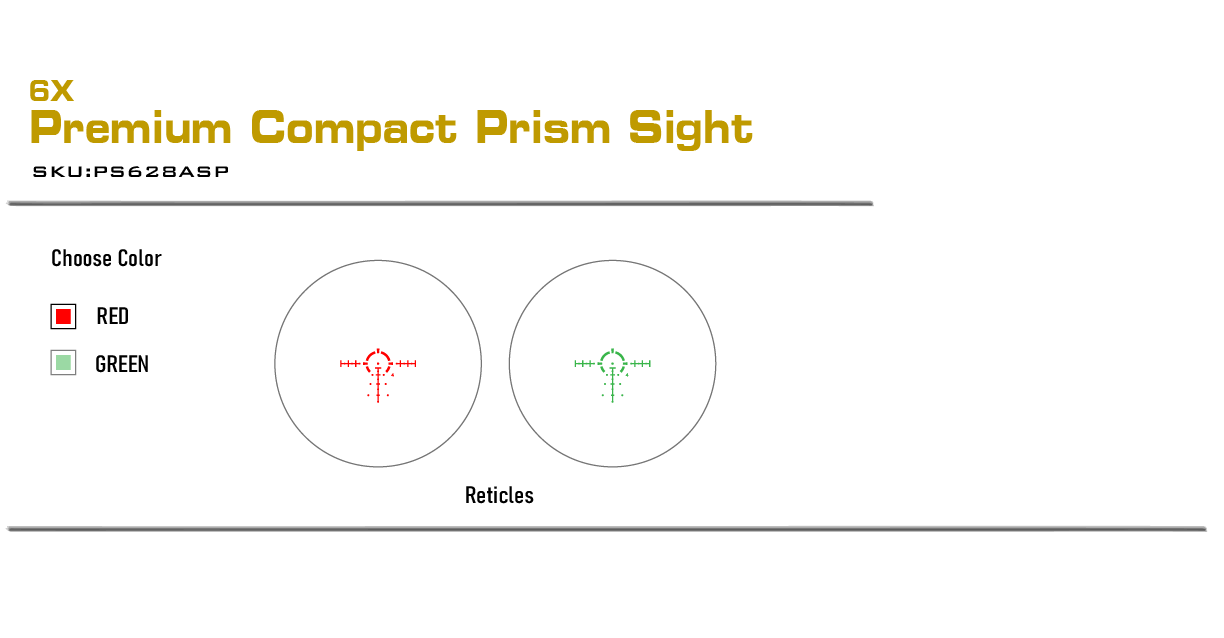

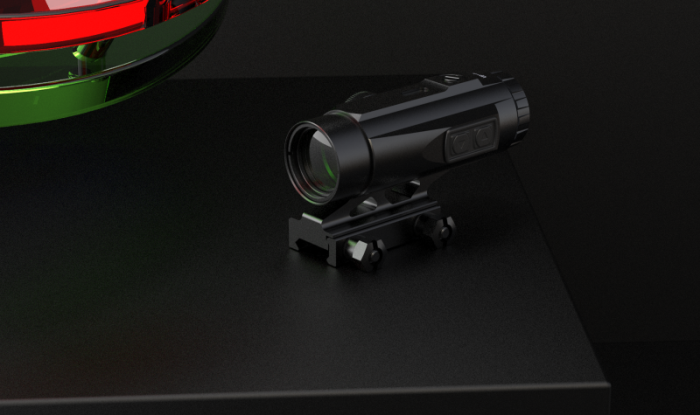

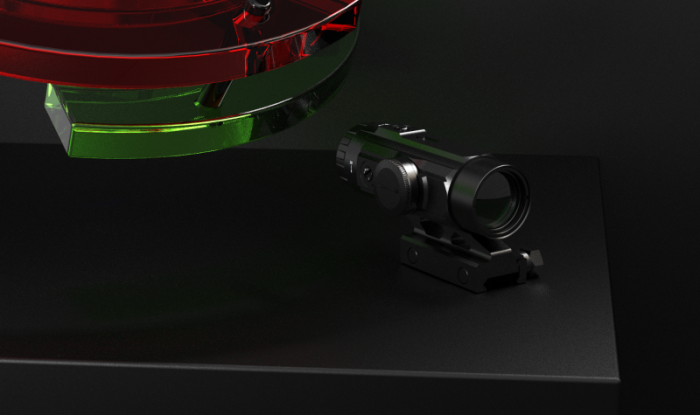

PS628ASP is a compact 6x prism sight designed for mid-range shooting with a large field of view and excellent optical performance. The adjustment assembly is precision machined for improved adjustment accuracy.

Compact and Large Field of View

The one-piece housing makes it compact, light weight and durable. The large parallax free field of view makes it the optimal choice for mid-range and long-range shooters.

Excellent Optical Performance

Multi-coated lenses increase optical transmittance and make scribe lines visible even without illumination, providing excellent optical performance and ultra-fast target acquisition.

+ ENVIRONMENTAL DATA

Waterproof	IPX7
Fogproof	Yes
Operating Temperature	-30°C ~ +70°C

+ OPTICAL DATA

Magnification	6X
Eye Relief (mm)	64
Field of View (ft@100yd)	3.65° 19.1 ft/6.4 m

+ PHYSICAL DATA

Center Height (mm)	35.5
Dimensions (mm)	112x58x56
Click Adjustment	1MOA

+ ELECTRONIC DATA

Brightness Control	10DL
Battery Type	CR2032
Auto-off	3h

SKU: PR113BSP-E

PR113BSP-E uses the latest prism technology to provide sharper imaging and excellent light transmission. Advanced prism structure makes it smaller and more compact. Whether the lighting system is on or not, it gives you precise aiming and positioning. The low battery alert function can remind the user to replace the battery in time, making up for the lack of reflective red dot sight.

SKU: PR1519CSP-E

PR1519CSP-E is a compact prism sight with a 1.5X magnification. Red green photos can perform well even in dim light, and can capture targets quickly and accurately. Multilayer coated lenses reduce chromatic aberration and provide you with perfect optical imaging experience.

SKU: PS318BSP

PS318BSP is a small, lightweight, ultra-compact electronically adjustable triple prism sight. Designed with the latest high-definition, parallax-free optics to excel even in dim light, it captures targets quickly and accurately. It's the perfect choice for shooters.

SKU: PS318CSP

PS318CSP is a prism sight with superior quality 3x CR2032 battery and solar dual power supply, dual power supply system effectively extends the battery life, to meet a variety of outdoor environments is an all-around prism sight.

SKU: PS318ESP

PS318ESP-E is an electronically adjustable triple prism sight that utilizes the latest design of high-definition, parallax free optics for fast and accurate target acquisition even in dim light. The embedded click value adjustment makes the small size, light weight and ultra-compact construction the most ideal choice for shooters.

SKU: PS318LF1-E

PS318LF1-E is an electronically adjustable triple prism sight with a rugged black anodized housing. With the latest high-definition, parallax free optics, the PS318FSP-E delivers excellent performance even in low light, allowing for fast and accurate target acquisition. 10 meters of water resistance makes it suitable for a wide range of environments.

SKU: PS318LF2-M

The PS318LF2-M utilizes the latest prism design with a mechanically adjustable 3x prism sight , providing clearer imaging and excellent transmittance. The red and green dual-color illumination allows for fast and accurate target capture even in dim light.

SKU: PS420CSP-E

PS420CSP-E is a compact 4x prism sight designed for mid-range shooting with a large field of view and excellent optical performance. The adjustment assembly is precision machined for improved adjustment accuracy.

SKU: PS420LF1-M

PS420LF1-M is a small and compact 4x mechanically adjustable prism sight with red and green dual color illumination for fast and accurate target acquisition even in dim light. Whether the illumination system is on or off, it provides you with precise aiming and positioning. The click value of 0.5 MOA effectively improves regulation accuracy.

SKU: PS525ASP

PS525ASP is a compact 5x prism sight designed for mid-range shooting with a large field of view and excellent optical performance. The adjustment assembly is precision machined for improved adjustment accuracy.
