AR122LF4-E_CLOSE RED DOT SIGHT

position: HOME > PRODUCTS > RED DOT SIGHT > CLOSE RED DOT SIGHT > SKU: AR122LF4-E

SKU: AR122LF4-E

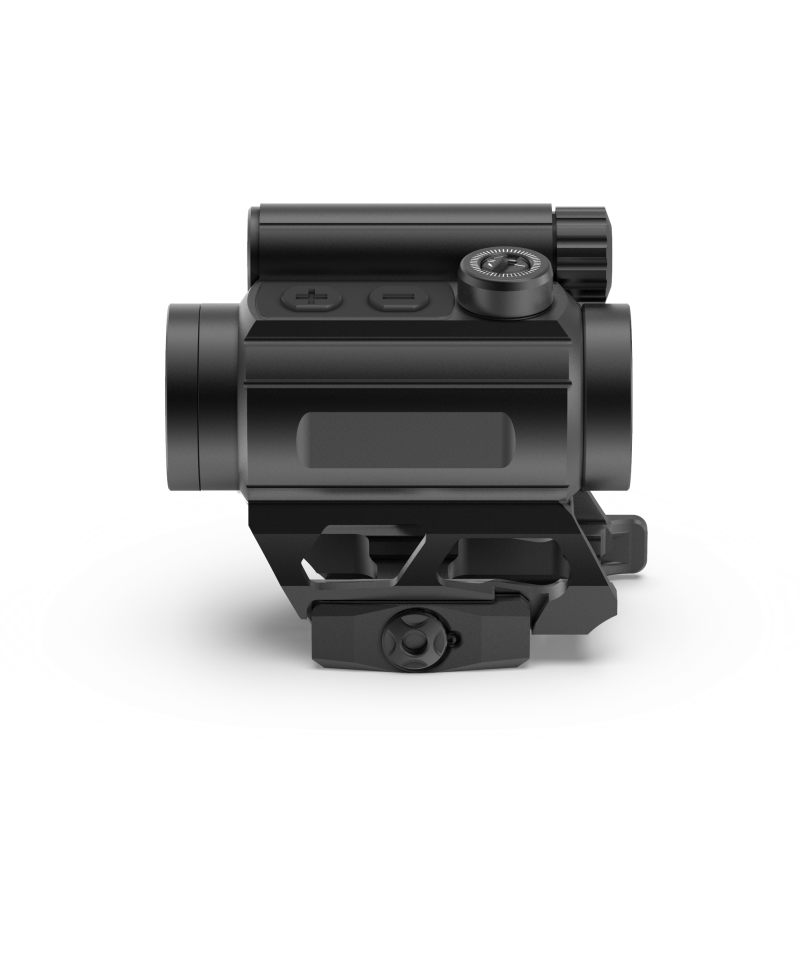

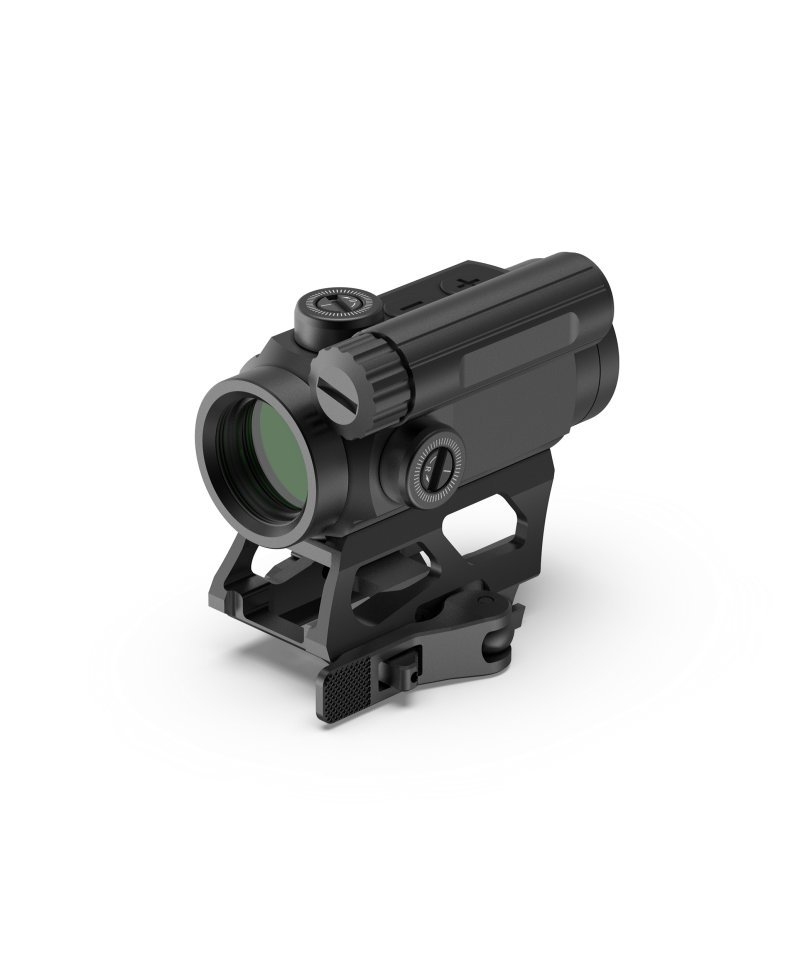

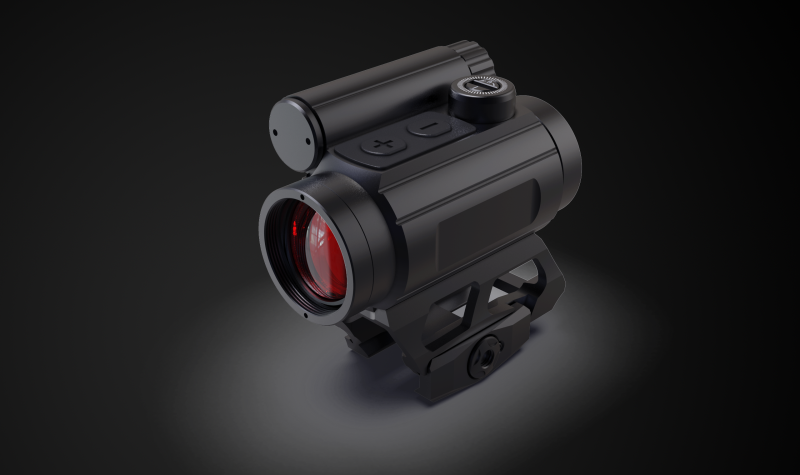

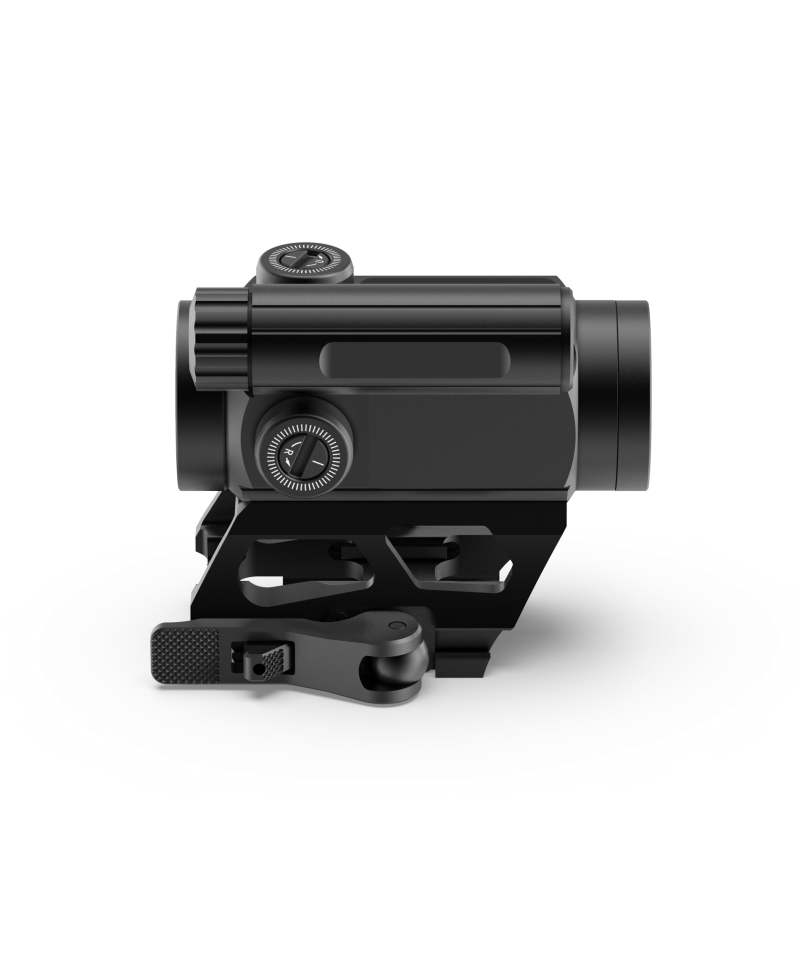

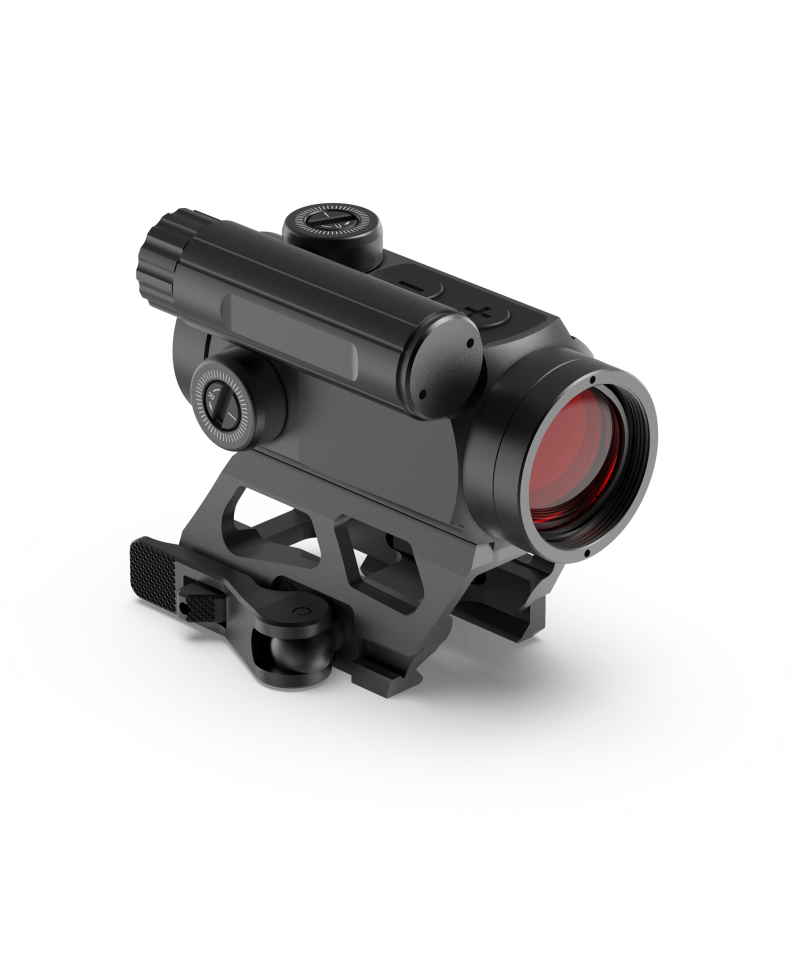

AR122LF4-E is a closed small red dot with excellent quality and electronic adjustment of 22mm diameter. It is durable and compact. The super LED and battery life is 50000 hours. The 13 brightness adjustment gears can meet the use of various light environments. Multilayer coated lenses make the field of view clearer and easier for users to aim at the target.

Larger View and Fast Installation

The 22mm diameter makes it field of vision larger and can aim at the target more accurately. Quick mount high base can be quickly clamped to the shotgun used by users.

Vibration Wakes Up

AR122LF4-E is an excellent sight with AAA batteries at the top. It has a vibration wake-up function. When the user does not use it for 5 minutes, it enters the sleep state. After sensing the movement, it enters the working state again so significantly improving the battery life.

+ ENVIRONMENTAL DATA

Waterproof	IPX7
Fogproof	Yes
Operating Temperature	-30°C~+70°C

+ OPTICAL DATA

Allowed Parallax at 50 yds	Parallax Free
Click Adjustment Value (MOA)	0.5
W/E Adjustment Range (MOA)	≥100

+ PHYSICAL DATA

Center Height (mm)	35.5
Dimension (mm）	74x43x65
Overall Weight (oz)	6.5

+ ELECTRONIC DATA

Brightness Control	Electronic 13 Levels
Battery Type	CR2032
Battery Life(hours)	50，000

SKU: AR122LF4-E

AR122LF4-E is a closed small red dot with excellent quality and electronic adjustment of 22mm diameter. It is durable and compact. The super LED and battery life is 50000 hours. The 13 brightness adjustment gears can meet the use of various light environments. Multilayer coated lenses make the field of view clearer and easier for users to aim at the target.

SKU: AR122LF5-S

AR122LF5-S is an electronic adjustment close red dot sight with excellent quality solar energy and CR2032 dual power supply. It is compact and durable. The super LED lamp perfectly matches with CR2032 battery and solar energy, significantly extending the battery life. It has electronic 10 levels to meet the use of various outdoor environments.
